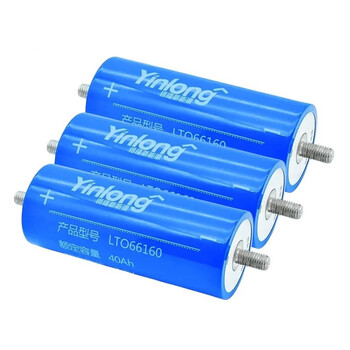

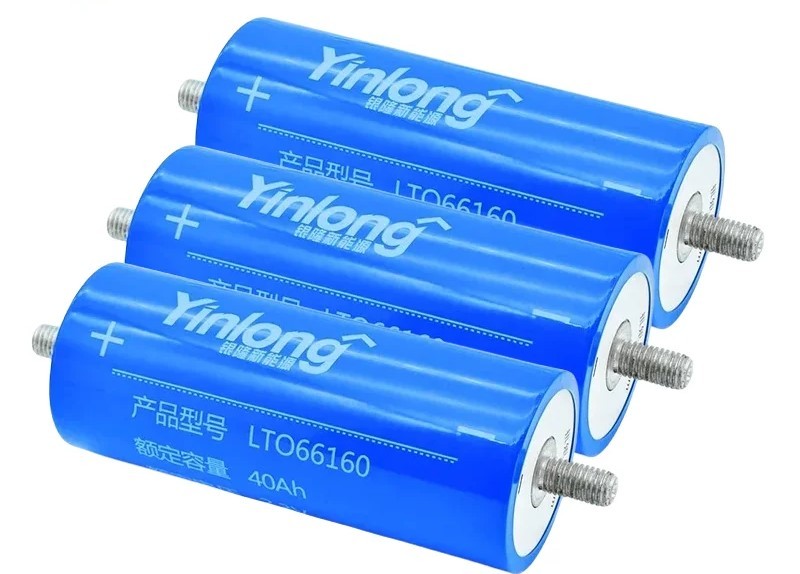

YINLONG YINLONG LTO40AH 66160 Lithium Battery 2.3V 20C , GRADE A, ΤΙΜΗ ΤΕΜΑΧΙΟΥ - ΑΠΑΙΤΕΙΤΑΙ BALANCER 6S

Battery data

·      Weight (kg) ~ 1.25

·      Height (mm) 160 (210mm with thread)

·      Width (mm) 66

·      Depth (mm) 66

·      Rated voltage (V) 2.3

·      Capacity (Ah) 40

·      Max. Discharge current 10Sec 20C (A) 800

·      Optimum discharge current (A) 40

·      Max. Charging current (A) 400

·      Optimum charging current (A) 40

·      Operating temperature -55°C - 65°C

·      Final charging voltage: 2.5V - 2.65V (manufacturer's specification 2.8V)

·      Final discharge voltage: 1.8V - 2.0V (manufacturer's specification 1.5V)

·      Trickle charge: not recommended, can be set to 2.25V/cell with solar charge controllers.

·      The difference between our specification and the manufacturer's specification results in a

·      capacity difference of <0.5Ah, if you want to protect the cells, please use our specifications and not the maximum values.

Notes on LTO cells

•     The optimum operating range of YINLONG LTO cells is between 2.0V and 2.5V.
•     When charging the cells above 2.5V, the voltage rises more sharply, above 2.6V very sharply. The situation is similar when discharging below 2.0V!
•     It is therefore very important to use a good active balancer for LTO cells that are connected in series.
•     When working with very high currents (charging or discharging), it may be necessary to further restrict the operating range in order to avoid large voltage increases or voltage drops.
