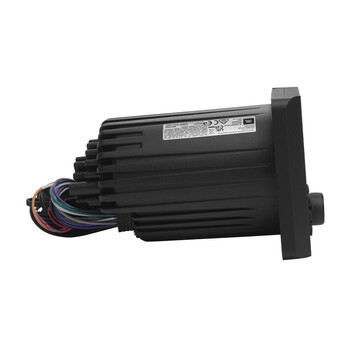

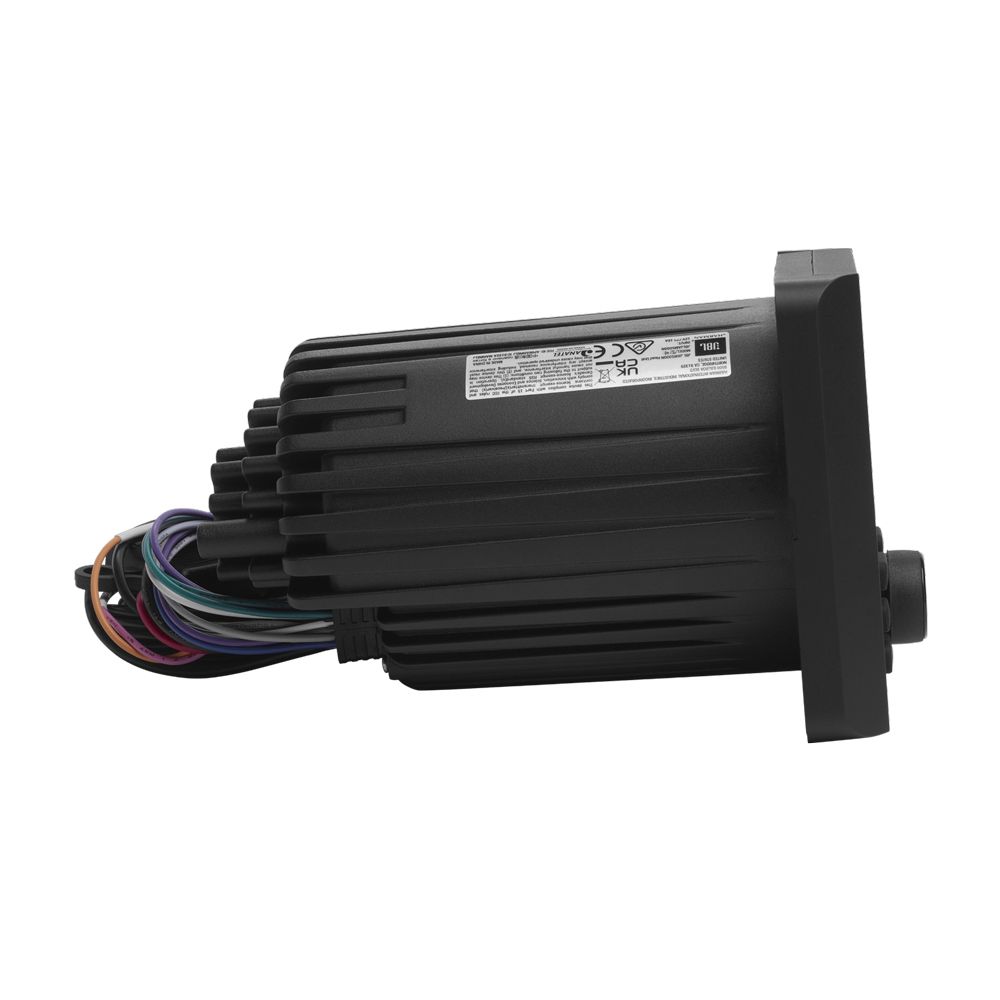

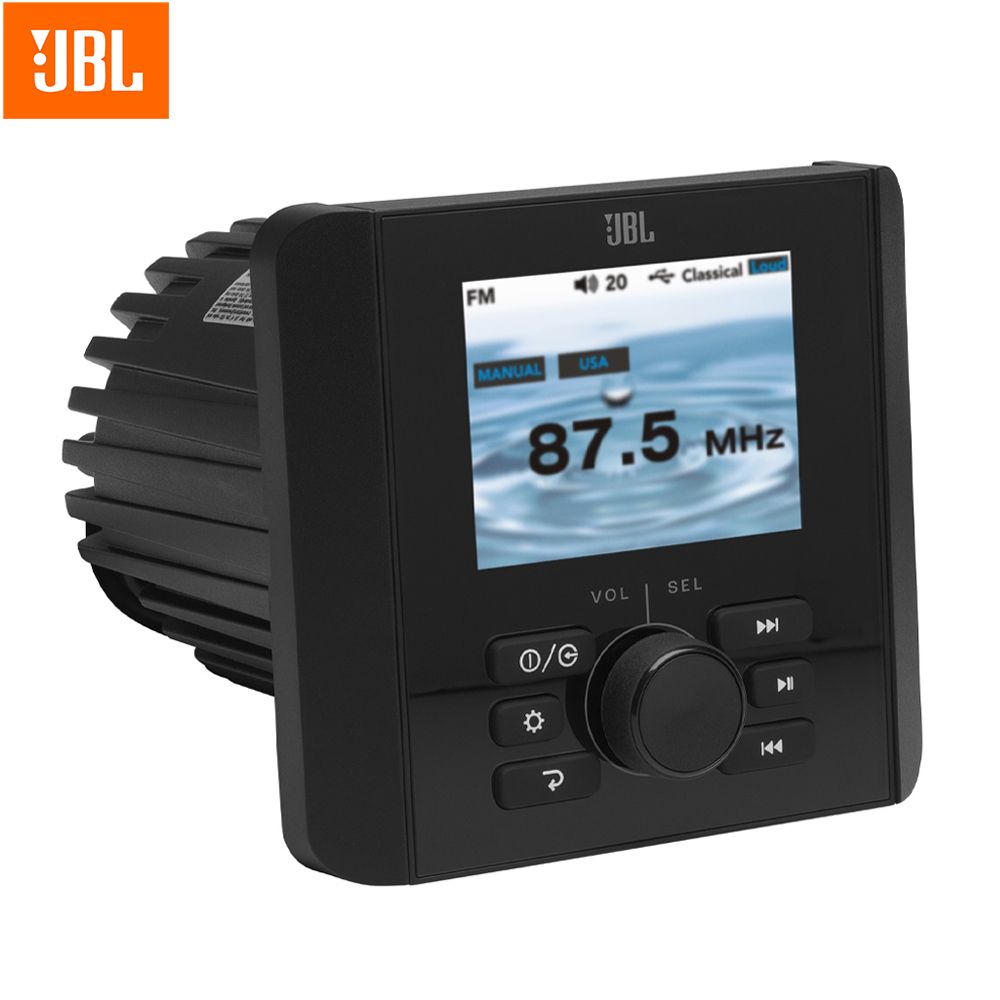

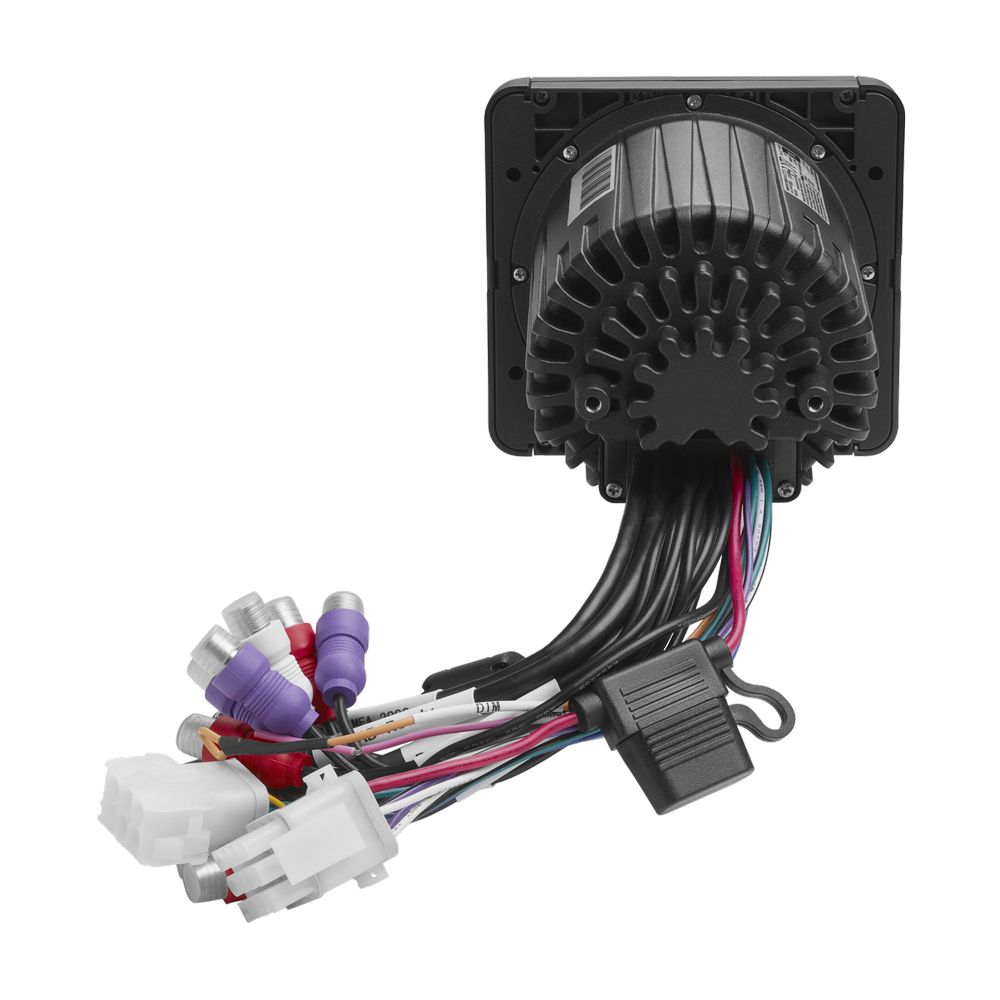

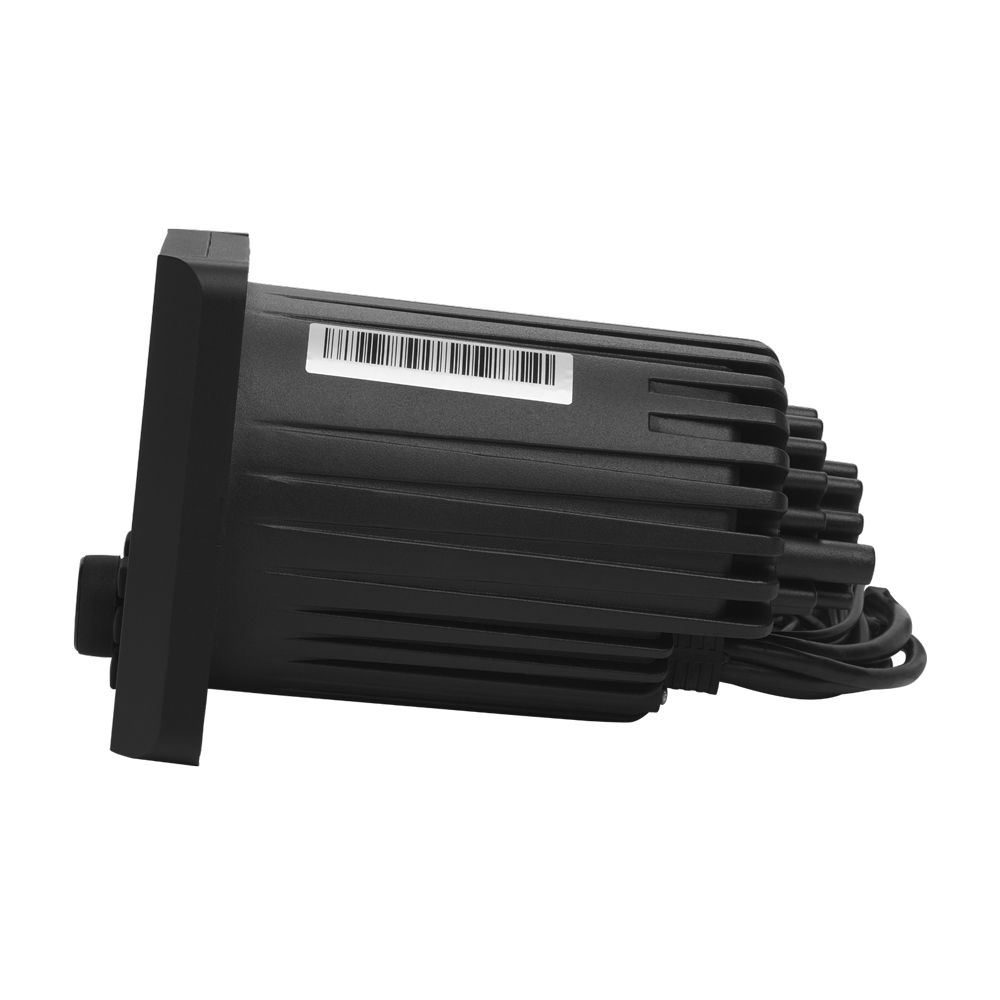

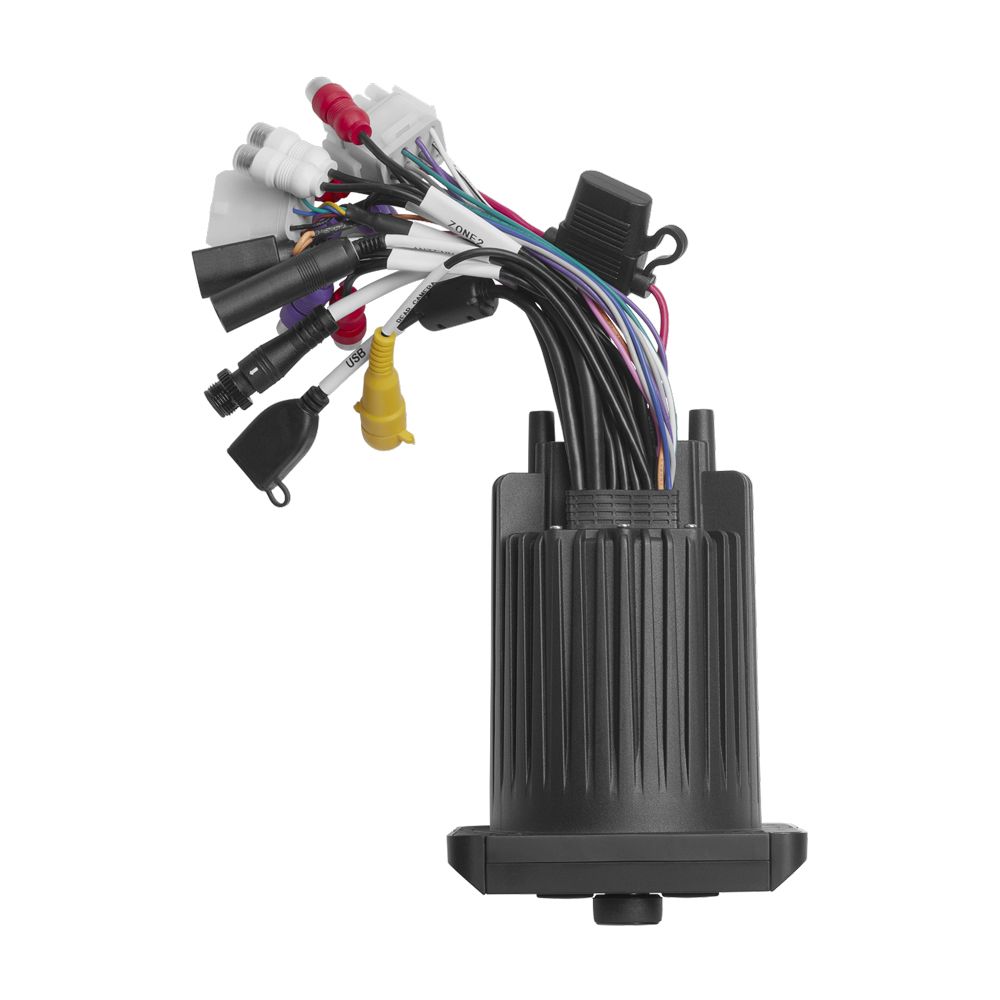

JBL JAM 5000N (4x25Wrms - RADIO - BT 5.0 - USB - REAR CAMERA SUPPORT)

Το JBL JAM5000N είναι ένα θαλάσσιο στερεοφωνικό entry-level που έχει σχεδιαστεί για να αντέχει στο θαλάσσιο περιβάλλον.

General Specifications

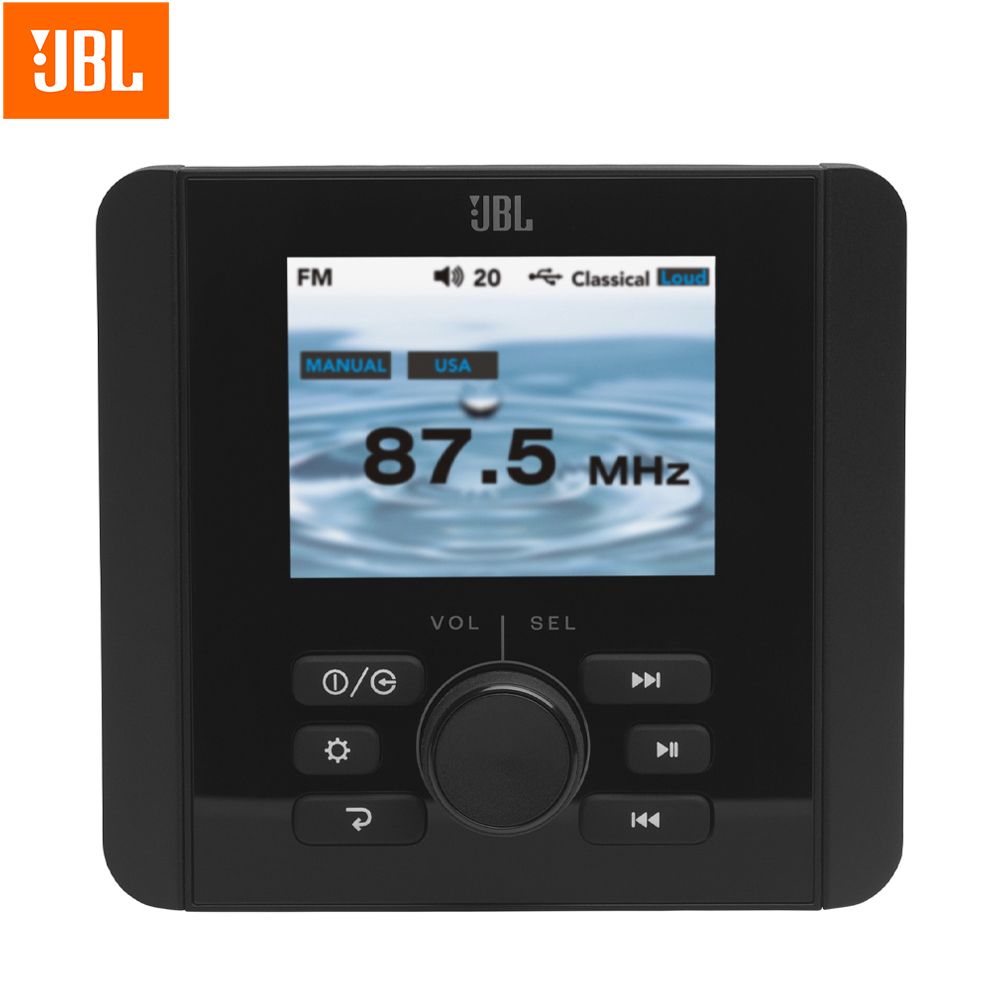

• LCD Display: 2.8” color TFT(320X240)
• Supports multiple audio sources: Bluetooth, USB, AM/FM/WB, DAB+ ready, iPhone/ iPad/ iPod
• Audio output: RCA & Speaker level
• NMEA 2000 certified: Yes
• Marine Rated: IP66
• RMS Power Output: 25Wx4
• 2ohm Stable: Yes
• Outputs: 3 zones
• Pre-out: 9Ch/4V
• Remote connectivity: Yes
• Rear camera input: Yes
• Eco-friendly Packaging: Yes
• Mounting options:  Front & Rear
• Bluetooth Version: 5.0 (Album art can support Apple devices only)
• USB Version: 2.0
• USB Audio Playback: MP3, AAC, WAV, M4A, FLAC
• USB-A Charging: 2.1A
• MFI Capable: Yes
• External Camera Input: YES
• Firmware Update: USB-A
• Tone Controls: Bass/Mid/Treble
• Mounting Installation hole :size M4 / #8 hi-lo screw (Φ3 mounting screw)
• Color: Black Chassis
• Switchable LVP: Yes
• Backlit LCD Display: When 12V illumination wire is active
• Backlit Buttons: Yes, White
• Heatsink Depth: (in/mm) 135mm
• Faceplate Height: (in/mm) 4.04in (102.5mm)
• Faceplate Width: (in/mm) 4.41in (112mm)
• Faceplate Thickness: (in/mm) 0.71in (18.1mm)
• Cutout: (in/mm) 3.44in (87.5mm)
• Weight: 1199.5g

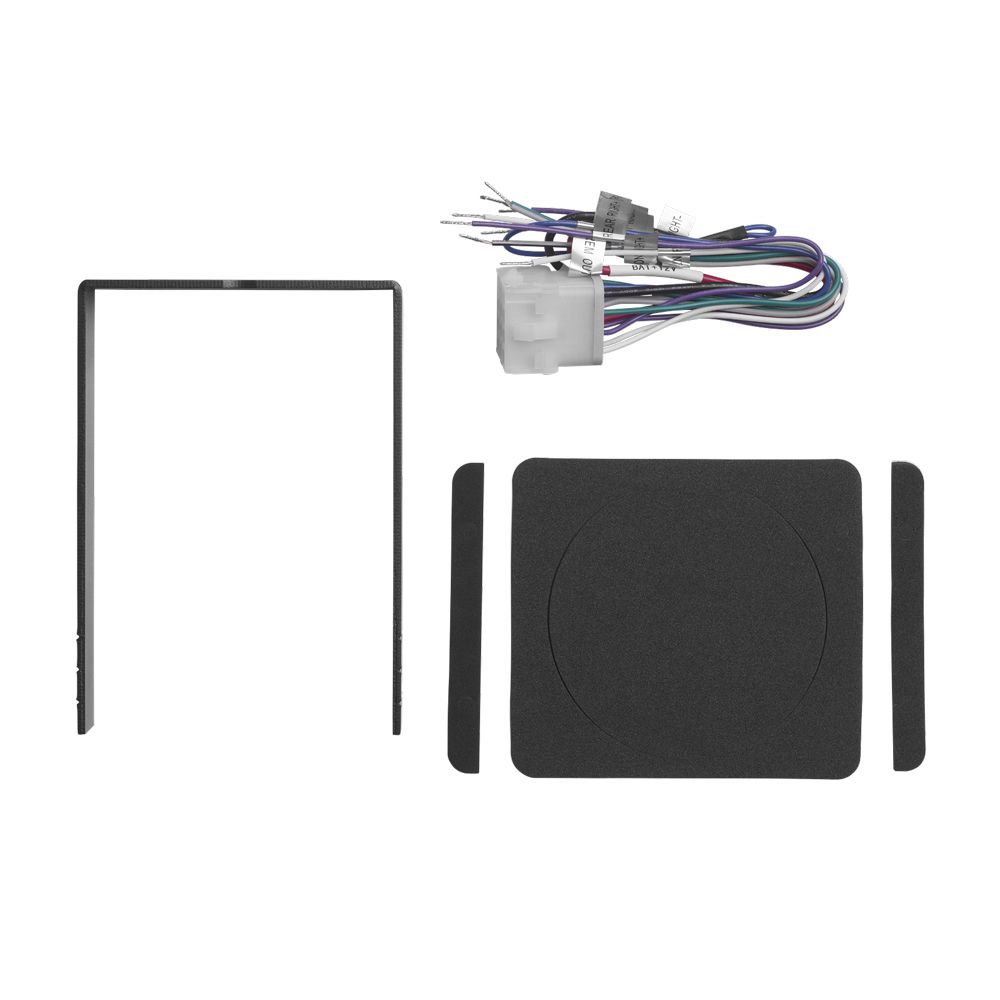

What's in the box

• 1 x radio

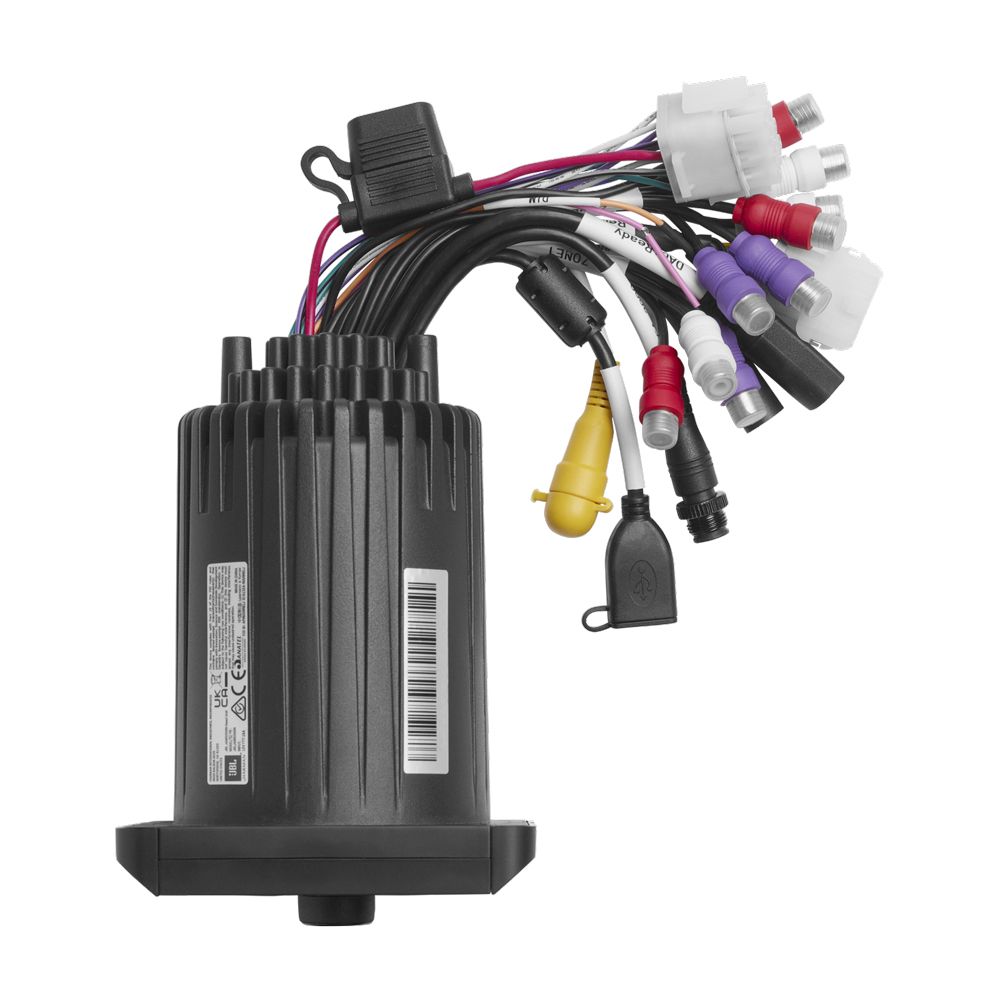

• 1 x accessory harness
• 1 x mounting bracket
• 1 x foam gasket for sealing at rear mounting surface
• 2 x foam strip gasket for sealing at front mounting surface
• 4 x mounting screws
• 2 x mounting bolts for top mount
• 4 x flanged nuts
• 2 x lock washers
• 1 x owner’s manual
• 1 x safety sheet
