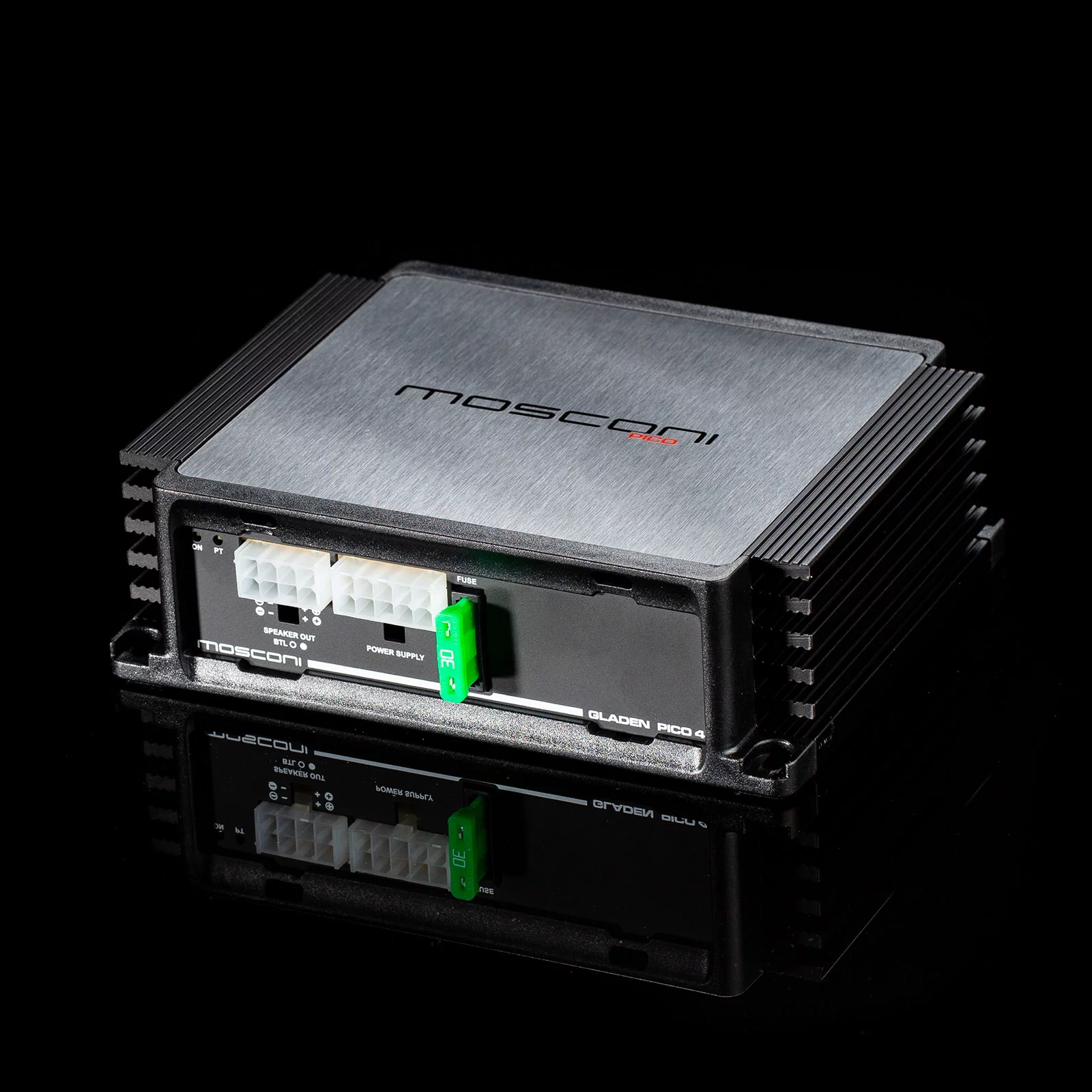

Mosconi MOSCONI PICO 4 / PICO 4 SA

Four channel full range PWM amplifier with separate synchronized modulation. Up to 480 Wrms total power, bridgeable and 2-Ohm stable. Thus, the Mosconi PICO 4 masters any constellation: whether classic front-sub / front-rear concepts, doorboard, two subwoofers or subwoofers with dual voice coil. Ideal supplement to a Mosconi PICO DSP amplifier, but with the high-level and low-level input and its own filters, it can also be used universally. Active crossover Molex connectors Compact design High current efficiency Crossover for semi active operation (Pico 4 SA) Available as 24 Volt version (Pico 4 only) TECHNICAL DATA MOSCONI PICO 4 / PICO 4 SA OUTPUT POWER: Output power RMS @ 4Ω:  4 x 90 Watts Output power RMS @ 2Ω:  4 x 120 Watts Output power RMS @ 4Ω:  2 x 85 Watts + 1 x 245 Watts (bridged) Output power RMS @ 4Ω:  2 x 240 Watts (bridged) SPECIFICATIONS: Input voltage: 0.3 - 20 V Overall efficiency: > 75 % Auto-On (only High Level): Off - BTL Channel 1+2 Filter (HP) : Off – 80 Hz (12 dB/Oct) Channel 3+4 Filter (HP/LP): Off – 80 Hz (12 dB/Oct) Channel 1+2 Filter (HP): Off – 280 Hz (12 dB/Oct) - Pico 4 SA Channel 3+4 Filter (HP/LP): Off - 220 Hz (12 dB/Oct) - Pico 4 SA Dimensions: 150 x 115 x 46 mm Weight: 1050 Gramm
