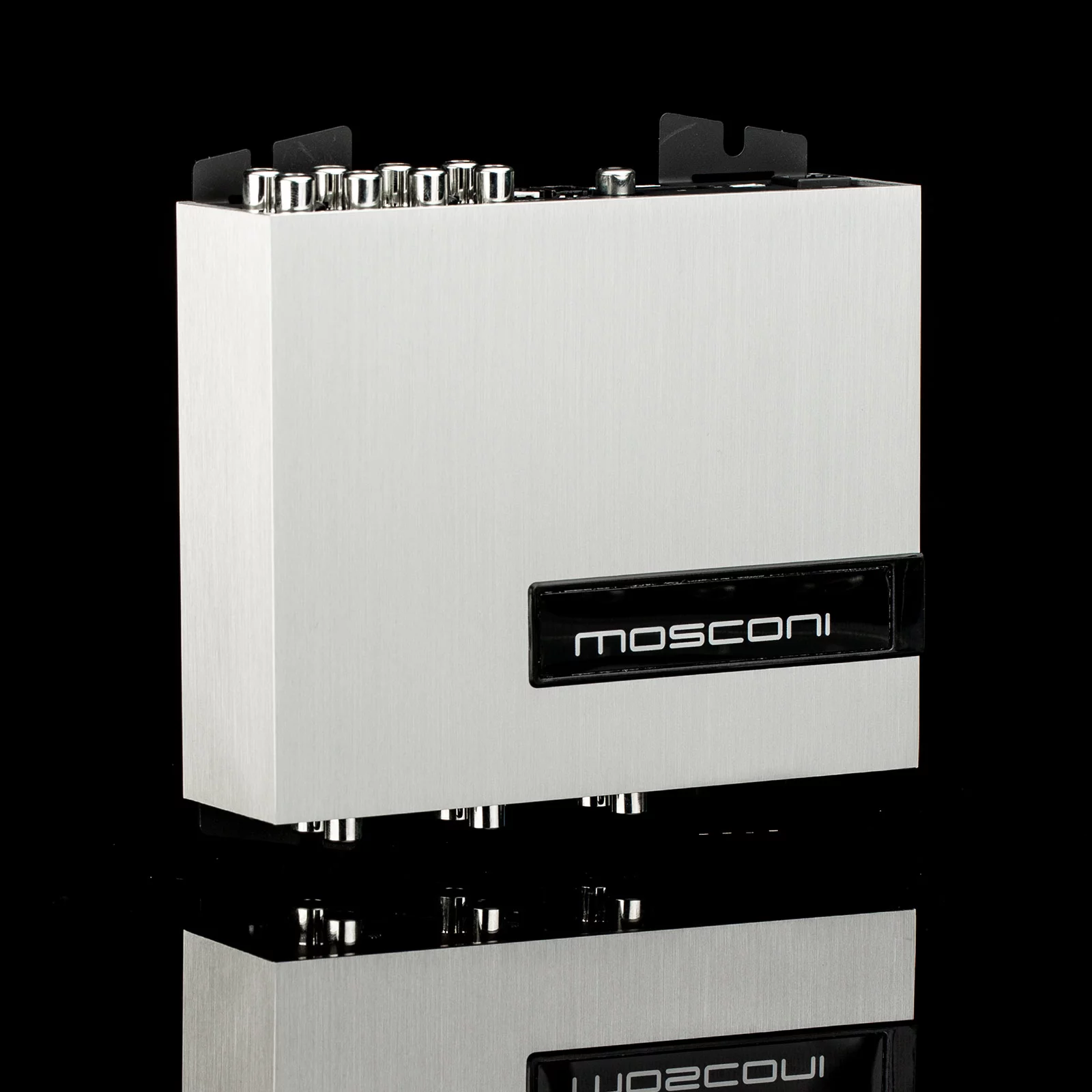

Mosconi MOSCONI DSP 6TO8 AEROSPACE

MOSCONI DSP 6TO8 AEROSPACE 6-channel input 8-channel output 96 kHz / 24 Bit  High Resolution-Audio With the incredibly powerful chip, the GLADEN DSP 6to8 AEROSPACE is faster than ever. We have developed the best DSP since MOSCONI exists. Without limit in signal processing...96kHz /24 bit \"A GAME CHANGER\". TECHNICAL DATA MOSCONI DSP 6TO8 AEROSPACE INPUTS: 6 x RCA (Cinch), switchable high/ low level with autosense 1 x S/PDIF digital optical 1 x RCA digital COAX 4 of them freely selectable as prioritized auto-fade/aux ATOM Mixer menu with dynamic preset switching and \"trigger\" control OUTPUTS: 8 x RCA analog 1 x S/PDIF optical (freely assignable, volume controlled) 12 V remote-out EQUALIZER: Fully parametric 30 band EQ, can also be used graphically, + 12 to - 12 dB, Q: 0.5 - 40 Fixed: channels front (1 - 4) Assignable channels: 5 + 6 = front, rear 7 + 8 = sub, center, free FILTERS: 10 per channel freely configurable Highpass, lowpass, shelf, notch, allpas, peak EQ Slope 6 - 120 dB/Oct, variable Q, time and level OTHERS: Time correction 0 - 12 ms (0.010 ms steps) Input delay (channels 1 - 6) for correction of run-time delayed plant systems Phase shift 0 - 180° Level adjustment outputs (0.5 - dB steps) Mute function 4 x preset memory (switching without sound interruption) Dimensions: 150 x 125 x 40 mm (incl. mounting flange)
