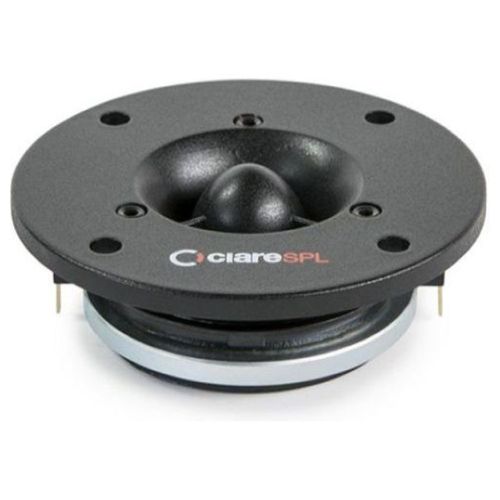

CIARE Ciare CT268ND Tweeter

Specifications Nominal Diameter  26 mm (1 in) Nominal Power Handling  150 W Sensitivity  105 dB Voice Coil Diameter  26 mm (1 in) Diaphragm Material  Aluminum Nominal Impedance  4 Ω Continuous Power Handling  250 W Frequency Range  4000 kHz - 20000 kHz Winding Depth 3 mm (0.12 in) Parameters Fs  2300 Hz Re  3.25 Ω Design Surround Shape  Nomex Fabric Connection Type  Faston Cone Shape  Planar Cone Material  Aluminum Mounting Info Overall Diameter  90 mm (3.54 in) Baffle Cutout Diameter  64 mm (2.52 in) Flange and Gasket Thickness  5 mm (0.2 in) Shipping Units  6 pcs Bolt Diameter  5.5 mm (0.22 in) Bolt Circle Diameter  116 mm (4.57 in) Depth  30 mm (1.18 in)
