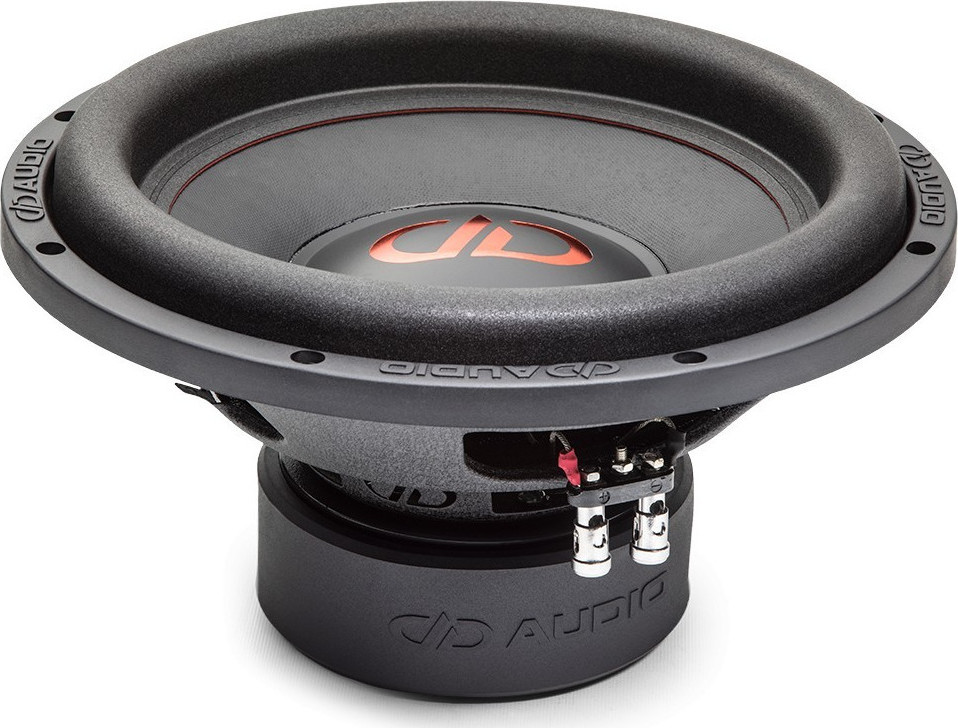

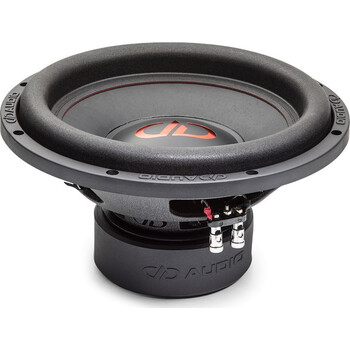

DIGITAL DESIGNS 506

The 500 series is one of the best performing subs you can find in its power class. With a highly efficient design, the 500 series can easily be driven to high output levels on as little as 150-400 Watts. When compared to the 200 Series the 500 Series uses a longer coil, more powerful motor and the suspension is designed to handle higher transient peaks. These are very versatile subs that work well in sealed enclosures while providing the extra energy and control needed for vented enclosures applications.

500 Series Features:

• EROM surround
• High-temp, 2.0”, voice coil
• Double Layer Deep bass, high excursion spider system
• Unique glass fiber and natural pulp cone
• Back plate coil gap venting
• Extended pole piece
• DD stamped steel basket (508-512)
• DD cast basket (506)
• MODEL	506D	508D	510D	512D
  Driver Size	6 1/2"	8"	10"	12"
  Watts RMS	150 - 400	150 - 400	150 - 400	150 - 400
  Peak Power	1200	1200	1200	1200
  VCD	2	2	2	2
  Impedance	D2 / D4	D2 / D4	D2 / D4	D2 / D4
  Piston Dia - in	5 3/8	6 3/8	8 1/8	10 3/16
  Fs - Hz	43.74	37.68	30.28	25.57
  Qms	4.907	5.858	4.321	4.614
  Qes	0.558	0.4905	0.4602	0.4701
  Qts	0.501	0.4526	0.4159	0.4266
  Vas - liters	4.395	8.813	27.44	86.42
  Xmech - mm	56	64	64	64
  Xmax - mm	9	10	10	11
  Frame OD - in	7	8 5/16	10 1/8	12 /14
  Frame OD w/Gasket - in	7 1/8	8 1/2	10 3/8	12 1/2
  Mounting Diameter - in	6	7 3/16	9 3/16	11 1/16
  Mounting Depth - in	4 1/2	5	5 1/4	5 7/8
  Motor Diameter - in	5 1/2	5 1/2	5 1/2	5 1/2
  Motor Depth - in	2	2	2	2
  Woofer Displacement - cu ft	0.04	0.06	0.07	0.09
  Sealed Enclosure - cu ft	0.25 - 0.5	0.35 - 0.6	0.4 - 0.8	0.5 - 1.0
  Ported Enclosure - cu ft	0.25 - 0.75	0.75 - 1.25	1.25 - 1.5	1.75 - 2.75
  Shipping Weight - lbs	10.5	14	15	15
