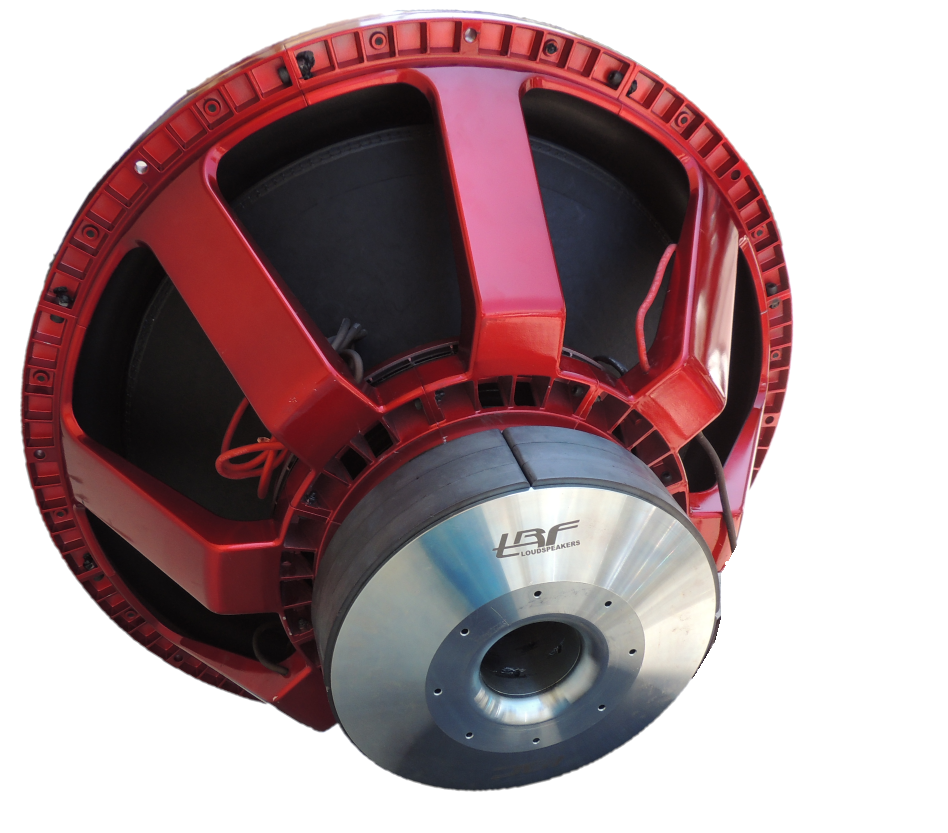

TRF SW32200PC D0.5

SPECIFICATION: MODEL:TRF SPL SW32200PC D0.5 Size: 33nch Cone: Competition Grade paper Surround material: Foam Voice coil made : MADE IN USA Voice coil dimension : 6.0inch Voice coil layer: 8layer Dust cap : Carbon FROM MADE IN EUROPE Nominal impedance:dual 0.5ohm Voice coil wire:aluminium Spider dimension : 6''ID / 15''OD Spider material : NOMEX Spider layers :6pcs x 2layers RMS Power: 13.000 - 20.000wrms MAX Watt: 40.000wmax Sensitivity: 96dB Vas: 650 L Resonance frequency(fs): 20Hz Mechanical Q factor(Qms): Electrical Q factor(Qes): Total Q factor:(Qts): Xmax: 60mm Force factor: N/A Magnet Weight: 69kg Net weight: 75kg Basket:Die cast Alumium Magnet: Ferrite Magnet dimension:Φ330*25mm X 3PCS 1=Outer Dimension: 840mm - 33" 2=Mounting Depth: 450mm 3=Magnet Dimension: 330mm 4=Mounting Hole Dimension:770mm
