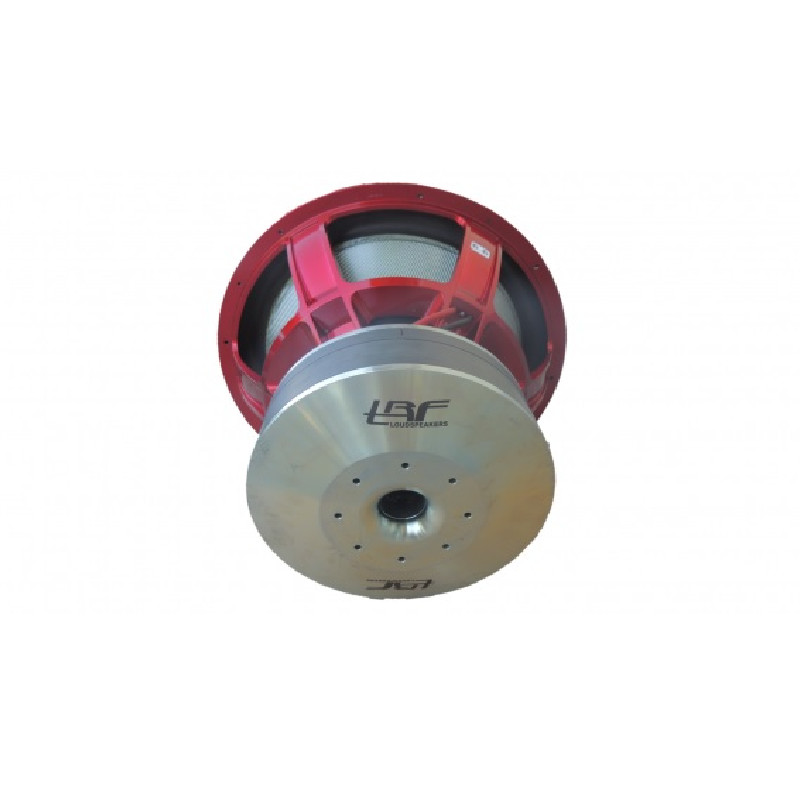

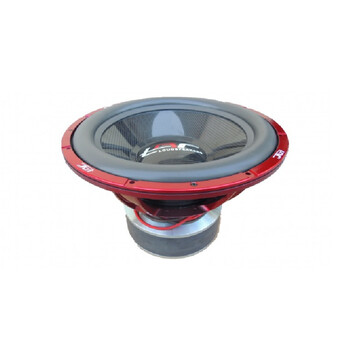

TRF SPL SW1865CC

SPECIFICATION:

• MODEL:TRF SPL SW1865CC D0.5 OR D0.7 OR D1 Ohm
• Size: 18nch
• Cone: Carbon FROM MADE IN EUROPE
• Surround material: Foam
• Voice coil made : MADE IN USA
• Voice coil dimension : 4.0inch
• Voice coil layer: 8layer
• Dust cap : Carbon FROM MADE IN EUROPE
• Nominal impedance:D0.5 OR D0.7 OR D1
• Voice coil wire:aluminium
• Spider dimension : 4''ID / 10''OD
• Spider material : NOMEX
• Spider layers :5pcs x 2layers
• RMS Power: 6500wrms
• RMS Program: 20.000 - 25.000wrms 3sec
• MAX Watt: 13000wmax
• Sensitivity: dB
• Resonance frequency(f0): - Hz
• Mechanical Q factor(Qms):
• Electrical Q factor(Qes):
• Total Q factor:(Qts):
• Xmax: mm
• Force factor: N/A
• Magnet Weight: -Oz
• Net weight: 45kg
• Basket:Die cast Alumium
• Magnet: Ferrite
• Magnet dimension:Φ280*25mm X 3PCS
• 1=Outer Dimension: 450mm
• 2=Mounting Depth: 341mm
• 3=Magnet Dimension: 280mm
• 4=Mounting Hole Dimension: 425mm
