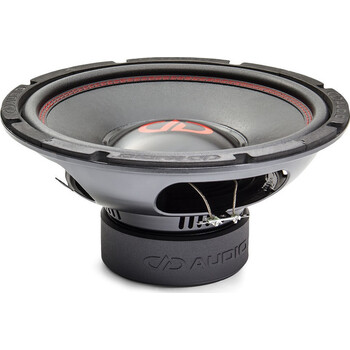

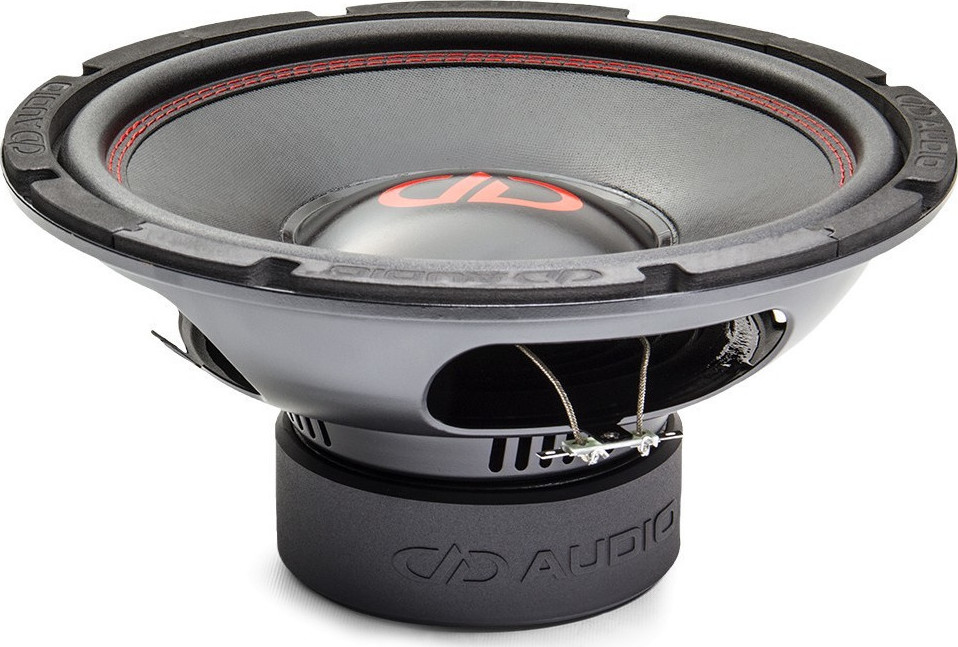

DIGITAL DESIGNS 112 S4

The 100 series is designed to have high output on as little as 100 Watts. They are hand built and tuned to work well in sealed and compact vented enclosure designs.

100 Series Features:

• Double Stitched EROM Surrounds
• High-temp 1.5”, aluminum former voice coil
• Laminated Double-Layer Spiders
• Non-pressed paper cones
• Cooling vent equipped baskets
• Backplate coil gap venting
• Extended pole piece
• MODEL	108	110	112
  Driver Size	8"	10"	12"
  Watts RMS	100	100	100
  Peak Power	600	600	600
  VCD	1.5	2	2
  Impedance	S4	S4	S4
  Fs - Hz	41	40	38
  Qms	5.692	5.965	5.789
  Qes	0.4822	0.6312	0.627
  Qts	0.4446	0.5708	0.5657
  Vas - liters	20.19	31.06	34.78
  dBSPL	87	90	85
  Frame OD - in	208mm - 8-13/64	257.5mm - 10-9/64	311mm - 12-1/4
  Mounting Diameter - in	183mm - 7-13/16	230mm - 9-1/16	286mm - 11-1/8
  Mounting Depth - in	103mm - 4	123mm - 4-53/64	140mm - 5.513
  Motor Diameter - in	125mm - 4-15/16	138mm - 5-27/64	138mm - 5.417
  Sealed Enclosure - cu ft	0.5-1.0	0.75-1.25	1.25-1.75
  Ported Enclosure - cu ft	0.75-1.25	1.25-1.50	1.75-2.75
