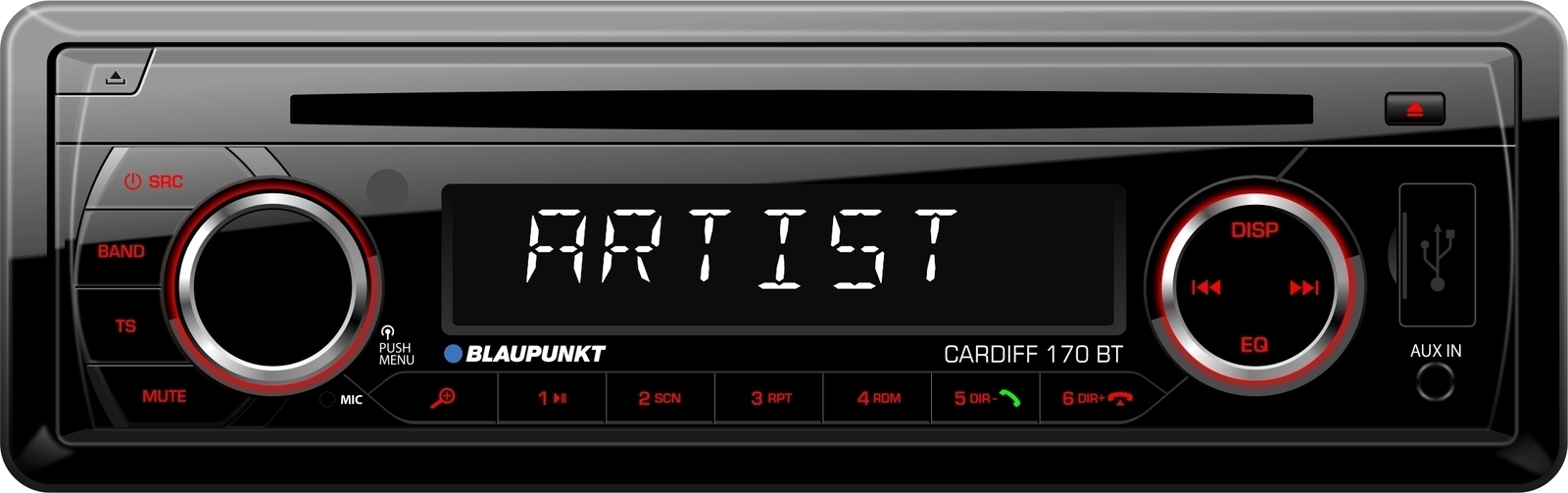

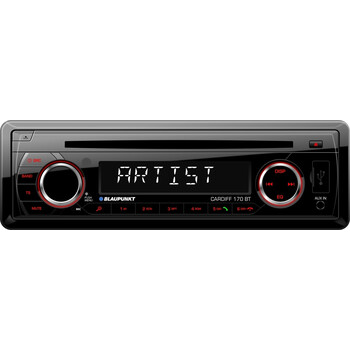

BLAUPUNKT CARDIFF 170BT

ANALOG RADIO

• Type of tuner: RDS Tuner
• World band tuner (switchable): EU. USA. South America
• Wave bands: FM 1.2.3.AM 1.2
• Radio Data System (RDS): Alternative Frequency (AF). Enhanced Other Networks (EON). Regional Programme (REG). Programme Service Name (PS). Traffic Announcement (TA). Traffic Program (TP)
• Travelstore: yes (FM3)
• Band Scan / Preset Scan: yes / yes
• Station memory: 30
• Sensitivity: local (on / off)
• Interference suppression: yes
• Frequency response (Hz) -3 dB: 40 ? 12.000

BLUETOOTH

• Supported version: Bluetooth 2.0 with EDR
• Supported profiles: HFP. A2DP
• Audio streaming: yes
• Pairing (number of devices): 1
• Hands-free calling: via micro + radio speaker
• Hands-free volume: yes
• Microphone: built-in
• Key functions: accept / hang-up
• Phone book access: yes

DATA CARRIER

• CD: CD-DA. CD-R. CD-RW
• Type disc-drive: Automatic loading
• USB: USB 2.0
• Memory cards: SDHC (up to 32 GB). SD
• Formatting: USB / SD FAT 32. FAT 16

MEDIA-PLAYER

• Playback format: MP3. WMA
• Title display: ID3-tag. file. folder

CD-PLAYER

• Schock Proof: yes
• Frequency response (Hz) ?1 dB: 40 ? 18.000
• Signal noise ratio: more than 55 dB
• Channel separation: more than 45 dB

EQUALIZER

• Bass (at100 Hz): +/-10 dB
• Treble (at 10kHz): +/-10 dB
• Balance / fader: yes/ yes
• X-Bass: yes (on / off)
• Sound presets: Flat. rock.pop. classic

AMPLIFIER

• Number of channels: 4
• Max. power: 4 x 40 Watt
• Sinus power at 14.4 V: 4 x 18 Watt

DISPLAY

• Type: LCD (1-line)
• Colour : negative. blackandblue
• View angle: 12 o?clock
• Clock display: yes

INPUTS

• Antenna (number of): 1
• USB (number of/ type): 1 (front / standardA-Typ)
• Memory cards: yes (behind front panel)
• Aux-In (number of. type): 1 front (3.5 mm jack)

OUTPUTS

• Loudspeaker (number of): 4
• Pre-amplifier channel: 2-channels (cinch)
• Pre-amplifier voltage: 4 V

GENERAL

• Power supplyrequirements: DC 12V. negative ground
• Current drain: 10 ampre (max.)
• Height x Width x Depth (mm): 50 x 178 x 160
• Software update: via USB
• Confirmation beep: yes (on/off)
• Front panel: Release panel
• Panel: Black
• Encoder / key illumination: Red/ Red
• Demo mode: yes
• Panel case: yes (includedin delivery)
• IR-remote control: yes(includedin delivery)

Highlights

• FM (RDS). AM (MW.LW) Tuner


• Playback formats: MP3. WMA


• Playback from USB. SDHC. SD


• Data carrier: CD-DA. CD-R. CD-RW. USB. SDHC. SD


• Built-in Bluetooth (HFP. A2DP)


• Telephone book access


• Built-in microphone


• Front USB (Standard A-type)


• SDHC-card slot (behindpanel)


• Front-Aux-in


• 4x40 Watt Max. + 2-channel Preamp-out


• 4-band. semi-parametric Equalizer


• Sound presets (Flat. Rock.Pop. Classic)


• X-Bass


• IR-Remote control included


• Release Panel
