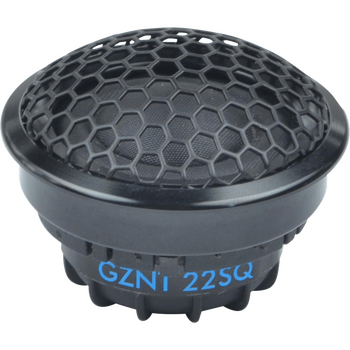

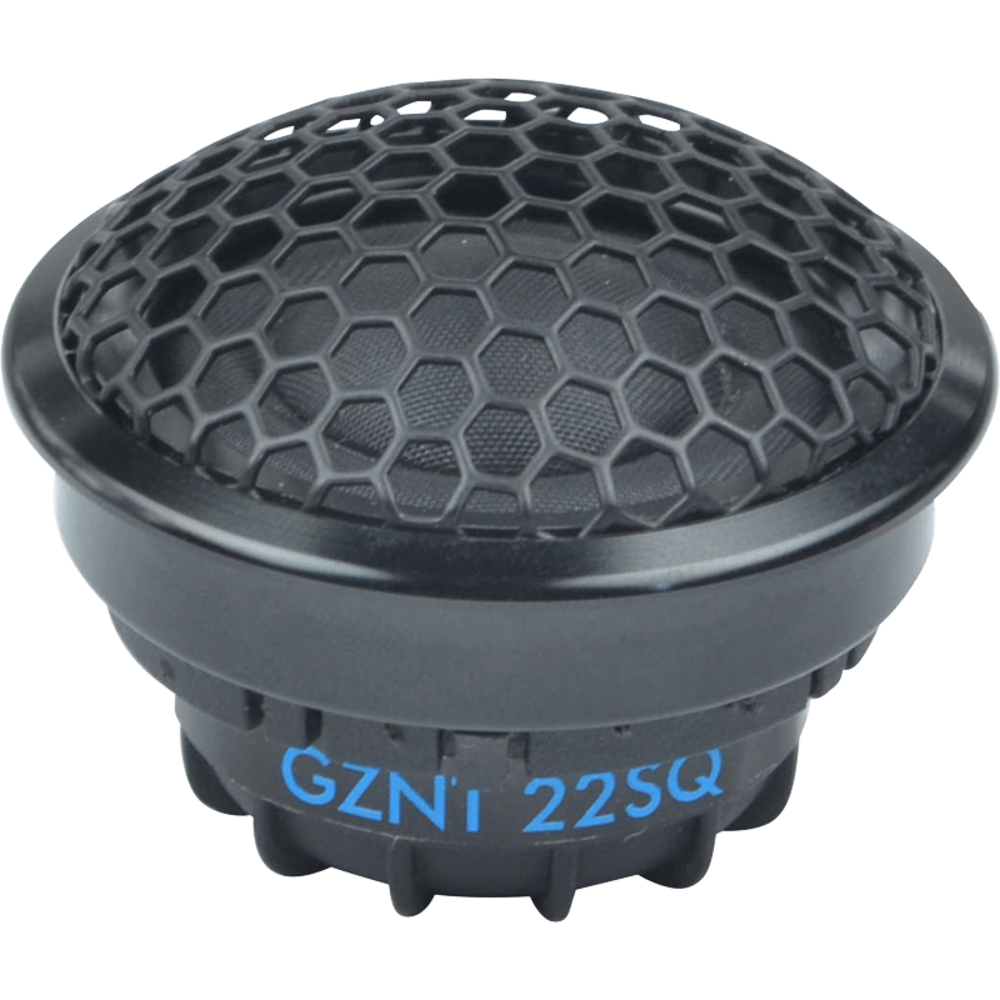

Ground Zero Gznt 22sq 100 Watts Max 0.87″ High Performance Silk Dome Tweeter With Couple Chamber 22 mm / 0.7″ High Performance Tweeter coated Soft Dome cca Voice Coil anodyzed Aluminum Housing coupled Chamber wave Diffuser neodymium Motor gol

100 Watts max
0.87″ high performance silk dome tweeter with coupled chamber
22 mm / 0.7″ high performance tweeter
Coated soft dome
CCA voice coil
Anodyzed aluminum housing
Coupled chamber
Wave diffuser
Neodymium motor
Gold plated terminal
1 pair / package
Model
High-Performance tweeter
Diameter
22 mm / 0.87"
Power Handling (RMS/max.)
60 / 100 Watts
Impedance
4 Ohms
Efficiency
89.5 dB
Frequency Response
2000 Hz – 28 kHz, 2000 Hz – 30 kHz
Voice Coil
22 mm / 0.87"
Membran Layout
Coated soft dome
Magnet material
Neodymium
Mounting Depth
23.1 mm / 0.91"
Resonance Frequency (Fs)
825 Hz
