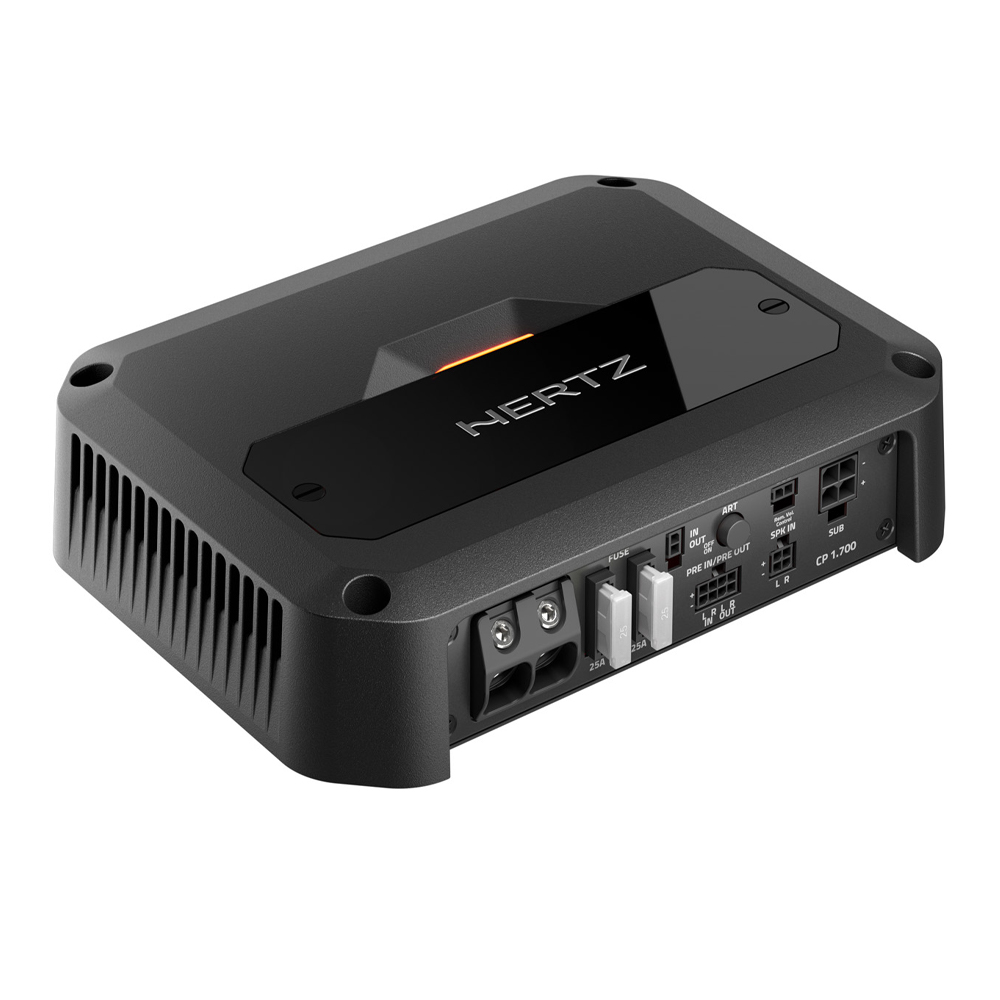

Ενισχυτής Αυτοκινήτου – Hertz CP 1.700
![]()
General Specs
| Channels | 1 |
| Amp class | D |
| POWER SUPPLY | |
| Nominal power supply voltage (fuse) | 11 ÷ 15 VDC (2 x 25 A) |
| Operating power supply voltage | 9 ÷ 18 VDC |
| Idling current | 1.10 A |
| Standby current draw | 4.5 uA |
| Consumption, MIN load impedance (Max Musical Power) | 33 A |
| Remote IN | 4 ÷ 17 VDC (1 mA) |
| ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only) | 1.5 VDC |
| Efficiency | 89% |
| AMPLIFIER STAGE | |
| Distortion - THD @ 100 Hz, 70% Rated Power | 0,01 % |
| Damping factor @ 1 kHz, 1W | 350 |
| Bandwidth @ -3 dB | 10 Hz ÷ 500 Hz |
| S/N ratio (A-weighted @ 1 V Input) | 113 dBA |
| Minimum load impedance | |
| @ 1 Ch: | 2 Ω |
| Adjustable Crossovers | yes |
Output Power
| Output power (RMS) @ 1% THD: | |
| 1Ch @ 4Ω | 400 W x 1 |
| 1Ch @ 2Ω | 700 W x 1 |
| Total Power | 700 W |
INPUTS / FILTERS
| Inputs | Pre-In / Speaker-In |
| Pre Out | Hi-Pass 50 ÷ 250Hz @ 12 dB/Oct. |
| Pre-In sensitivity | 0.32 ÷ 8 VRMS |
| Speaker-In sensitivity | 1.6 ÷ 40 VRMS |
| Sub Ch Lo-Pass | OFF / 50 ÷ 250 Hz @ 24 dB/Oct. |
| Bass Boost 50Hz | 0 ÷ 9 dB |
| Subsonic Hi-Pass | OFF / 25 Hz @ 24 dB/Oct. |
| Sub Remote Volume Control | -20 ÷ 6 dB (Active on Rear Ch with LPF ON) |
