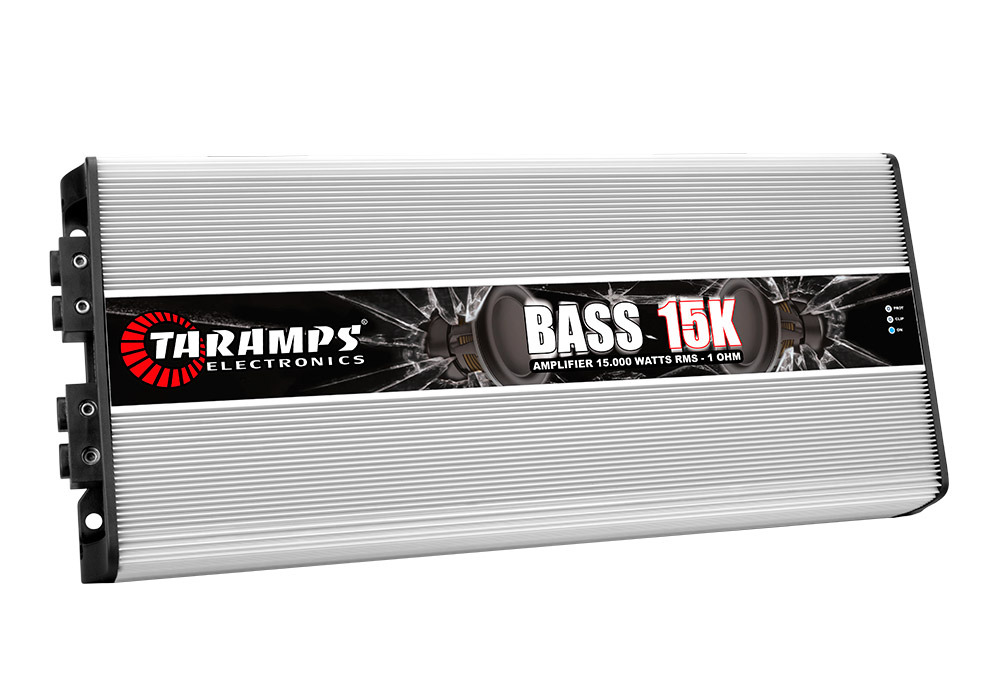

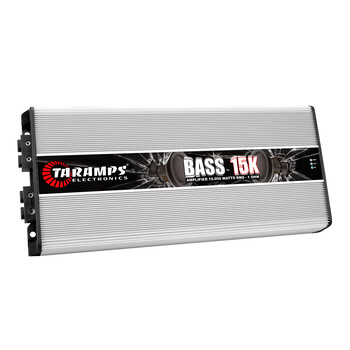

Taramps BASS 15 k

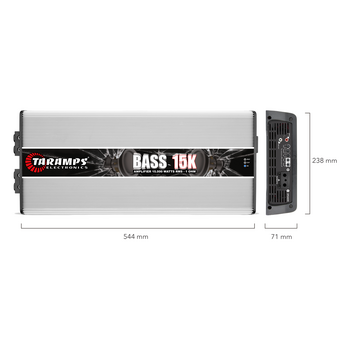

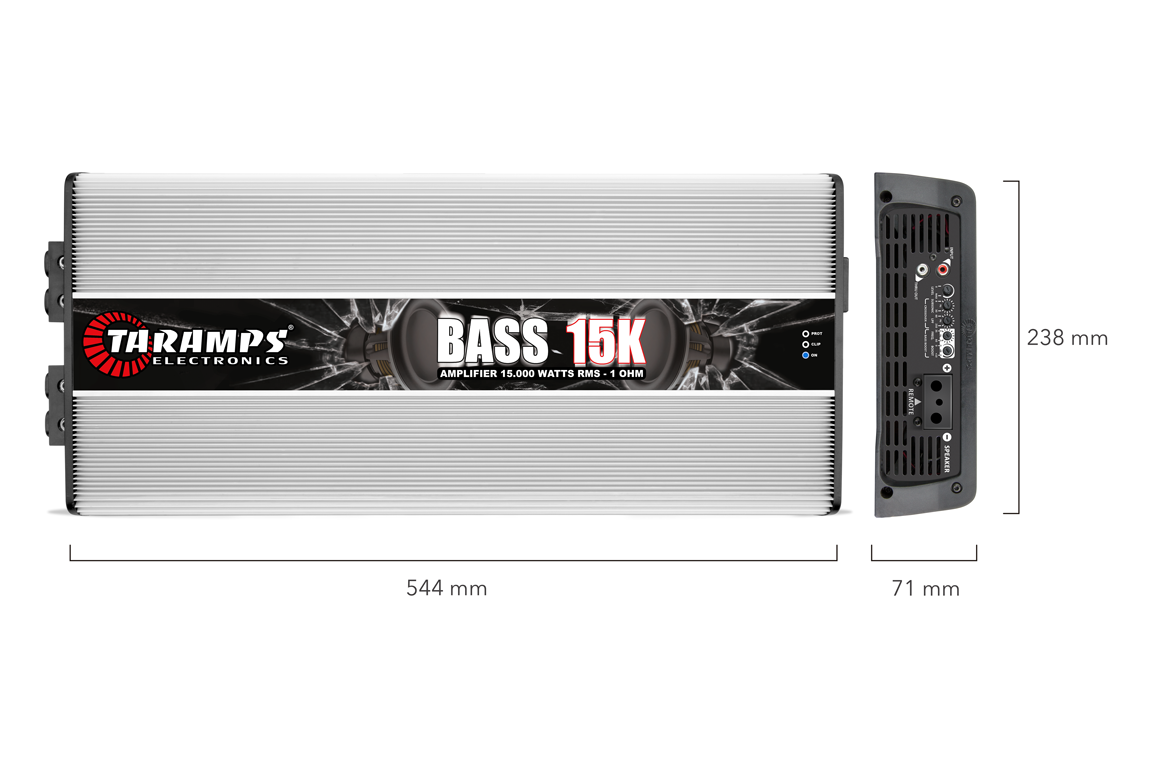

Technical information Operation class Class D Number of Channels 01 Maximum power @ 14.4 VDC – 1 OHM: 15000 W RMS @ 14.4 VDC – 2 OHMS: 8505 W RMS Input Sensitivity 280mV Signal to Noise Ratio >95dB Frequency Response 8Hz – 250Hz (-3dB) Crossover high pass (HPF) 8Hz to 30Hz (-12dB/8ª) Variable Crossover low pass (LPF) 60Hz to 250Hz (-12dB/8ª) Variable Bass Boost Parametric, Freq.: 35 to 60Hz / Boost: 0 ~ +12dB Efficiency 80% Input Impedance 22K Ohms Protection system Output Short / Short on output relative to GND / High and Low Power Supply and Thermal protection Min. Supply Voltage 9 VDC Maximum Power Supply Voltage 17 VDC Consumption at rest 400mA Maximum music consumption 651A Maximum consumption in sinusoidal signal 1302A Dimensions (H x W x D) 9.37″ x 2.79″ x 21.42″ Weight 21.34lb
